Norco Section A1

Norco Section A1
$1,699.00 - $2,199.00
Color: Blue Black/Grey Blue
Size: 55.5cm
Please select options Unavailable
This item is not permitted to be shipped. However, it can be purchased online and picked up in store. Please contact us with any questions.


The Section Aluminum is built for all-day rides and for riders who are in it for more than the scenery.

This all-road rocket is built around big tires and a lightweight, butted X6 butted aluminum frame with geometry and features that won't let any road interrupt the rhythm of a great day out. Each frame is engineered with lateral stiffness and shock-absorbing vertical compliance to allow for efficient power transfer while smoothing out rough surfaces so riders can keep their head down, and their legs churning out the watts – no matter where the ride ends up.

- Lightweight X6 butted aluminum frame with All-Road tire clearance and performance geometry
- Full carbon fork with tapered steer with easy fender mounting
- Wide range Shimano 105 compact 2x10speed drivetrain w/GRX RD-X810 rear derailleur
- Powerful Shimano 105 R7020 hydraulic disc brakes
- Shimano front and rear hubs are reliable and easily serviceable

- BUTTED ALUMINUM FRAME & CARBON FORK: Frames built with lightweight X6 aluminum feature full carbon forks for a robust and durable all-road endurance rig. Curved & ovalized seatstays, bent chainstays, thinned seat tube, top tube and optimized fork blade design maximize rider comfort and reduce fatigue.

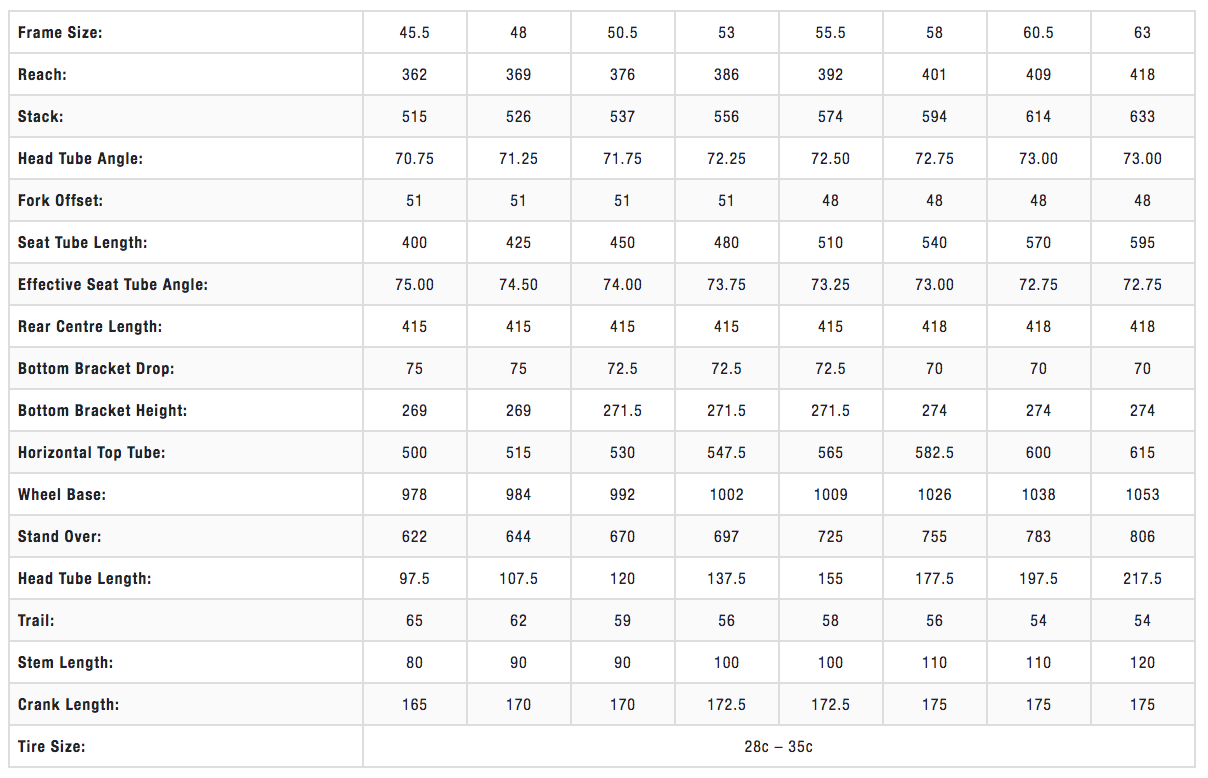

- SECTION GEOMETRY: Designed to excel on multiple road surfaces, the geometry is a balance between conventional race and endurance bikes, providing fast comfort; ready for anything from a road sign sprint to a hard-pack dirt road.
- FRAME STIFFNESS: Front and rear 12mm thru-axles, oversized head tube junction, downtube, BB shell and chainstays deliver lateral stiffness for maximum power transfer and control over rough terrain.
- HIGH VOLUME TIRES: Accommodates 28c to 35c tires for increased comfort, traction, and flat protection.
- ACCESSORY MOUNTS: Three bottle cage mounts on the frame and stealth fender mounting points create a bike with versatility to match the adventure and the season.


Frame Double Butted X6 Aluminum, Smooth Welds
Fork Mid-Modulus Carbon
Headset Integrated Cartridge Bearing
Rims/Wheels WTB ST i21 TCS 2.0, 32H
Hubs Front: Shimano HB-RS470, 12x100mm, Center Lock
Rear: Shimano FH-RS470, 12x142mm, HG, Center Lock
Spokes Stainless, Black
Tires Vittoria Zaffiro Pro V 700x32c Graphene 2.0
Crankset Praxis Alba M30, 50/34T, 170mm (48, 50.5), 172.5mm (53, 55.5), 175mm (58/60.5)
Bottom Bracket Praxis M30, BSA Threaded
Chain KMC X11
Front Derailleur Shimano 105 FD-R7000
Rear Derailleur Shimano GRX RD-RX810 Shadow RD+
Cassette/Rear Cogs Shimano 105 CS-R7000, 11-32T, 11 Speed
Shifters Shimano 105 ST-R7020
Handlebars Aero All Road Aluminum, 10deg Flare, 40cm (48, 50.5), 42cm (53, 55.5), 44cm (58, 60)
Tape/Grips Norco Griptacular Shockproof Tape
Stem Norco SL Aluminum, 90mm, (48, 50), 100mm (53, 55.5), 110mm (58, 60)
Brakes Shimano 105 BR-R7020 Hydraulic Disc, Resin Pads w/Shimano SM-RT70, Ice Tech, 160mm rotors
Pedals Sold Separately
Saddle Norco Race
Seat Post Aluminum, 27.2mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue Black/Grey Blue / 55.5cm 058817512209 0416011805 210000023437
