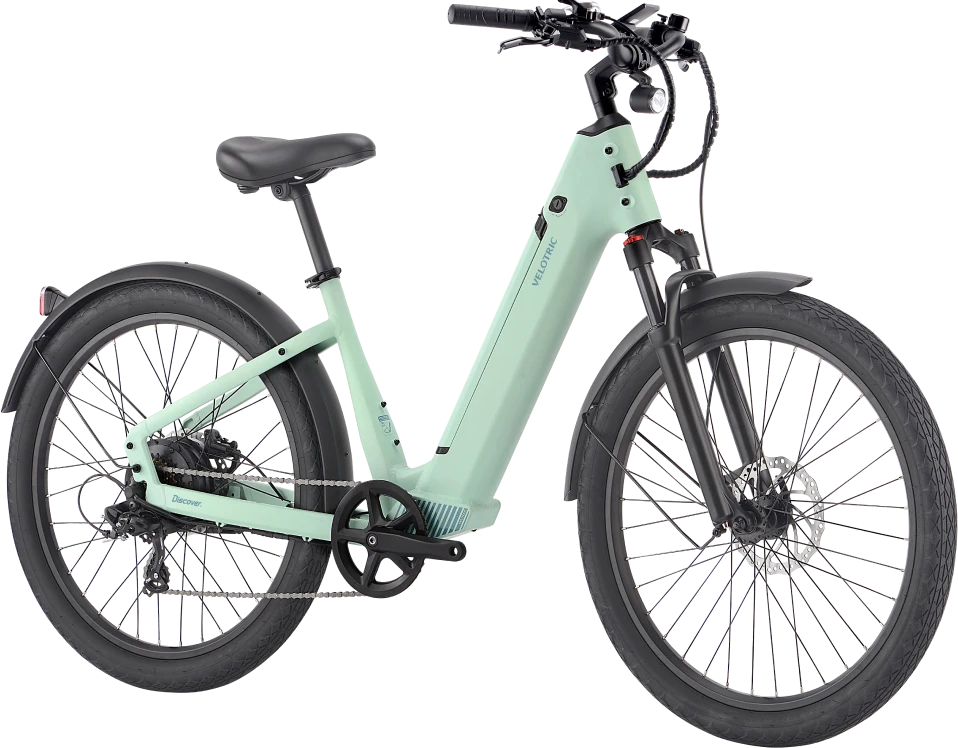

Velotric Discover 1 Step-Thru

Velotric Discover 1 Step-Thru
This item is currently not available.

Details

A premium quality commuter e-bike that's affordable for everyone.

- 48V 14.4Ah, 500W Class 2 with Throttle Assist.
- Top speed 25 mph.
- 5-level pedal assist, Walk mode, USB charging.
- Frame with Fully-integrated Battery Design.
- Hydraulic Disc Brakes.
- Shimano 7-speed.
- UL 2271 Certified Battery included.

Features:

- Fly on wheels. Fast and smooth.
500W high-performance motor (peak 900W) and a 65Nm torque for a smooth, exciting, and effortless riding experience even at 8 degrees uphill.

- Have more fun with 50% longer range.
Equipped with a 21700 48V 14.4Ah removable battery made by Samsung, the Velotric Discover 1 features a 50% longer range compared to similar bikes in the market. Up to 65 miles on a single charge. You only need to charge once per week.

- Colorful design for your stylish ride.
The Velotric Discover 1 comes with 5 stylish color options. Pick your mood!

- Easy to hop on & off. Accessible to all riders.
The reinforced aluminum step-thru frame so you can easily hop on & off, even with items stored on the rear rack.

- Ride with the peace of mind.
Safety is our most important design philosophy. Not only have we certified both our battery and bike with UL®, one of the highest safety standards in the eBike industry. We rigorously tested our bike frames over 150,000 times under the toughest" conditions so you never have to worry about our quality.

The Discover 1 is equipped with a rear light with braking high-beam function, IPX6 grade waterproof, and double Hydraulic-Disc Brakes offering riders extra safety in any conditions.

Geometry

Sizes:
Frame SizeOne Size
Head Tube Angle: 68°
Seat Tube Angle: 70°
Reach / Stack: 386/630mm
Rider Heights: 5'1''-6'4''
Rear Center: 480mm
Minimum seat height: 788mm
Maximum seat height: 989mm
Handlebar height: 1020mm
Total length: 1822mm
Seat tube length: 435mm
Standover height: 390mm
Wheelbase: 1140mm
Sizes:
Frame SizeRider Height (in)
One Size 5'6" - 6'9"

Specs

Frame Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork Hydraulic suspension with 80mm travel, with Lock-out
Wheels Double-wall aluminum alloy, 36H
Tires 26 x 2.5’’, puncture-resistant liner
Crankset Aluminum alloy, 170mm
Chainrings 42T
Shifters Shimano SL-TZ50, 7-speed, thumb shifter
Rear Derailleur Shimano RD-TY300, 7-speed
Cassette/Freewheel 7-speed, 14-28T
Chain KMC-Z7
Brakes Hydraulic disc brakes
Rotors 180mm front and rear
Brake Levers Aluminum Alloy, with adjustable reach and power cutoff switch
Handlebars Aluminum alloy, 31.8mm, 660mm wide on Step-thru, 680mm wide on High-step
Tape/Grips Durable ergonomic grips
Stem Aluminum alloy, velotric customized, 10-degree rise
Seatpost Aluminum alloy, 350mm x 30.4mm, quick release clamp
Saddle Velotric urban comfort ergonomic seat, 220mm wide
Pedals 9/16’’ Alloy platform with reflectors
Accessories & Extras High output integrated LED, adjustable angle
Integrated tail light with rear fender
Heavy-duty aluminum kickstand with wide foot
Motor Velopower H50
Battery 48V, 691Wh, UL 2271 Recognized
Controller/Display 3.5’’ Backlit LCD display with speed, trip, battery, assist Level and more
Charger 48V, 3A, operates on 100V-240V AC, 5-6 hours charging

* Subject to change without notice.
