Velotric T1
Details

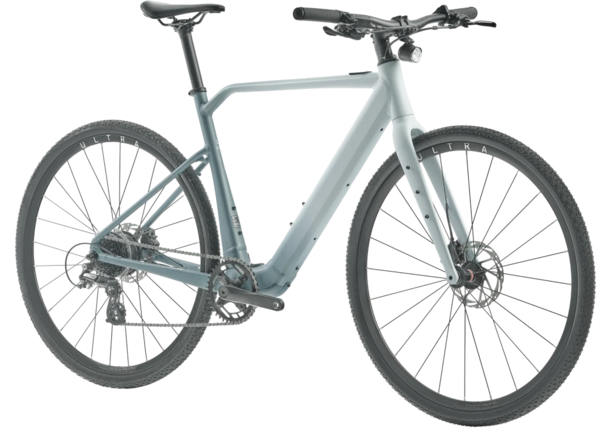

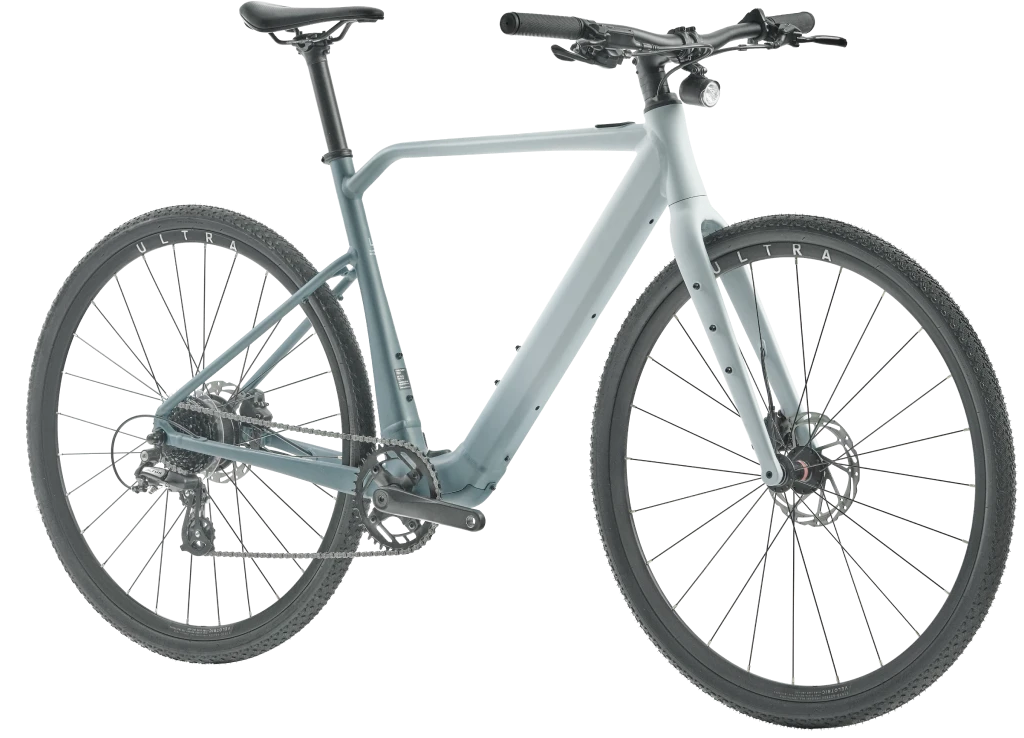

Introducing the Velotric T1. Sleek, lightweight & powerful. Our first smart bike, engineered for everyday enjoyment. Powered by our proprietary drive system E35+ with torque sensor technology.
Details:
- 36V 9.8Ah Battery, 350W Motor, 2-side Torque Sensor.
- Top speed 20 MPH, Class 1. 25 MPH (Unlock)
- 5-level pedal assist, Walk mode.
- 36 lbs, 6061 Aluminum alloy Frame and Fork.
- Tektro Hydraulic Disc Brakes.
- Shimano 8-speed.
- Velotric Smartphone App, Velotric Smart+ Sensor.
- Anti-Theft Alert, Keyless Unlock, GPS Tracking, Ride Customization via Riding Modes, Ride Tracking, Health Tracking, Auto Headlight.
Features:
- Zero Wire. Less E, More Bike.
Clean. Sleek. Integrated battery. Zero external wires. Plenty of power packed inside -- but outside Velotric T1 looks just like a regular bike.
- Ultralight. Designed for Urban and Beyond.
At just 36 lbs (16 kg), Velotric T1 is the perfect grab-and-go choice for a smooth, nimble ride in the city or beyond.
- Velopower E35+. Smart, smooth, silent.
Velotric T1 is powered by Velopower E35+, our smart new proprietary drive system. Equipped with a torque sensor for best-in-class smoothness, and a powerful motor to breeze through most city streets with a 350W (Peak 600W) motor and 45Nm of torque. Go up to 70 miles with our 36V 9.8Ah battery
- Ride with Peace of Mind
Equipped with our Smart+ Hub and GPS tracking, it’s easy to find Velotric T1 via the Velotric app, whether that’s after a long day or in the unfortunate case someone steals your bike.
Our ambient light-sensing headlight will also turn on when it gets dark. Smart and safe, just how we like it.
| Frame Size | Medium | Large |
|---|---|---|
| Seat Tube Length | 480mm | 525mm |
| Seat Tube Angle | 73° | 73° |
| Min Saddle Height | 810mm | 855mm |
| Max Saddle Height | 982mm | 1025mm |
| Head Tube Length | 115mm | 135mm |
| Head Tube Angle | 71° | 71° |
| Stack | 546mm | 565mm |
| Reach | 438mm | 447mm |
| Stand-Over Height | 757mm | 805mm |
| Top-Tube Length (Horizontal) | 600mm | 615mm |
| BB Drop | 70mm | 70mm |
| Fork Rake/Offset | 55mm | 55mm |
| Front-Center | 664mm | 680mm |
| Rear-Center | 445mm | 445mm |
| Frame Size | Rider Height (in) |
|---|---|
| Small | 5'6" - 6'0" |
| Medium | 5'10" - 6'5" |
Specs
| Frame | 6061 Triple-Butted Aluminum Alloy Frame, Integrated Cable Routing, Internal Battery, Flat Mount Disc, Rack and Fenders Compatible |
|---|---|
| Fork | 6061 Aluminum Alloy, Internal Brake Routing, 12x100mm Thru-axle, 1-1/4” to 1-1/8” Tapered Steerer,Fenders Compatible |
| Rims |
700c Disc, Double-Wall Aluminum Alloy, Pinned Front: 24 Hole Rear: 28 Hole |
| Hubs | NOVATEC Aluminum Alloy J-Hook Disc Hub,12x100mm Thru-Axle |
| Tires | 700x38c Ebike Puncture Resistant Tires |
| Crankset | Aluminum Alloy, 170mm |
| Chainrings | PROWHEEL Pro Aluminum Alloy, 40T Narrow Wide Chainring |
| Shifters | SHIMANO M315-8 |
| Rear Derailleur | SHIMANO M310-8 |
| Cassette/Freewheel | SHIMANO 8 Speeds, 11-32T |
| Chain | KMC Z8.3 |
| Brakes | TEKTRO HD-R280 Hydraulic Disc Brake |
| Rotors | 160mm Front and Rear |
| Brake Levers | TEKTRO HD-R280 Aluminum Alloy, with adjustable reach |
| Handlebars | 6061 Aluminum Alloy, F31.8mm, 680mm |
| Tape/Grips | VELOTRIC Sports Grips |
| Stem | 6061 Aluminum Alloy, 3D-Forged Alloy, 8-Degree Rise, 31.8mm Clamp, Garmin Mount Compatible |
| Seatpost | 6061 Aluminum Alloy, 30.9 x 300mm |
| Saddle | SELLE ROYAL SRX |
| Pedals | Aluminum Alloy |
| Accessories & Extras |
Light Sensing, 6v/3w/45Lux High-Output Integrated LED, Adjustable Angle Headlight Theft Alert, GPS-Tracking, Fingerprint and Bluetooth Unlock |
| Motor | 350W (Peak 600W), 45Nm |
| Battery | 36V, 9.8Ah, 352.8Wh |
| Charger | 36V, 2.0A, Operates on 100V-240V AC, 50-60Hz |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Crystal Black / Medium | 06976061500244 | 210000035687 |
| Crystal Black / Large | 06976061500251 | 210000035688 |
| Frozen Blue / Medium | 06976061500220 | 210000035685 |
| Frozen Blue / Large | 06976061500237 | 210000035686 |
